Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine

Product Categories
Glorytek Industry (Beijing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine

Brand Name : Glorytek

Model Number : option

Certification : CE and others

Place of Origin : China

MOQ : 1 set

Price : 350000-390000USD Per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15 set per month

Delivery Time : 25-35days

Packaging Details : Seaworthy package

Drifter Model : ZY-104H

Hole Dia : 76-102 mm

Application : Mining, Quarrying, Construction

Drill rod : T45(T51)x3,660 mm

Hole depth : 22 m

Climbing Angle : 25°

Power : 93 kW

Max. impact power : 20 kW

Speed : 2,200 rpm

Fuel tank capacity : 280 L

Diesel Engine : Cummins 152 kW

Feed / Pull up force : 20 kN / 20 kN

Air Compressor pressure : 8 bar

Max. traction force : 69 KN

Total Weight : 14,100 kg

Contact Now

Top Hammer Rock Drilling Rig

The track oscillation system makes the center of gravity of the drill rig more stable to climb the slopes up and down,with stronger track tradion.The protection design of the cab and drill rod carousel protect personnel from possible danger;
The rig can drill multiple rock holes in single positioning action. The flexible drilling arm and off-road ability meet complex rock drilling requirements. For hole diameter <115 mm, hole depth is less than 15 m, the drilling speed is 50% faster than high pressure integrated DTH drilling rig;

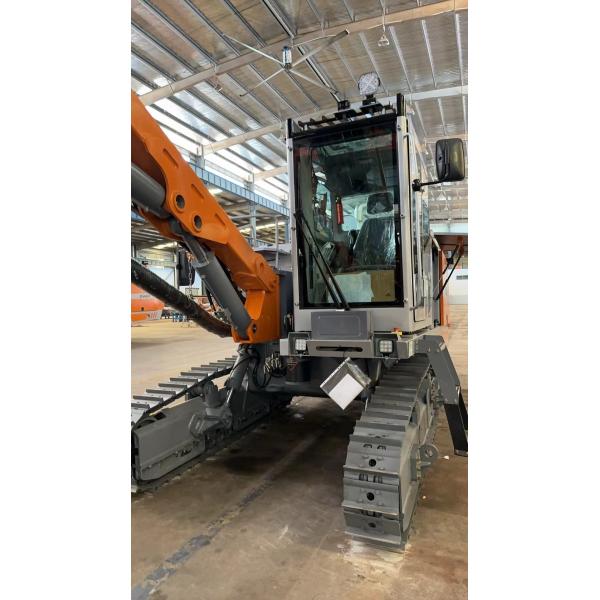

Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine

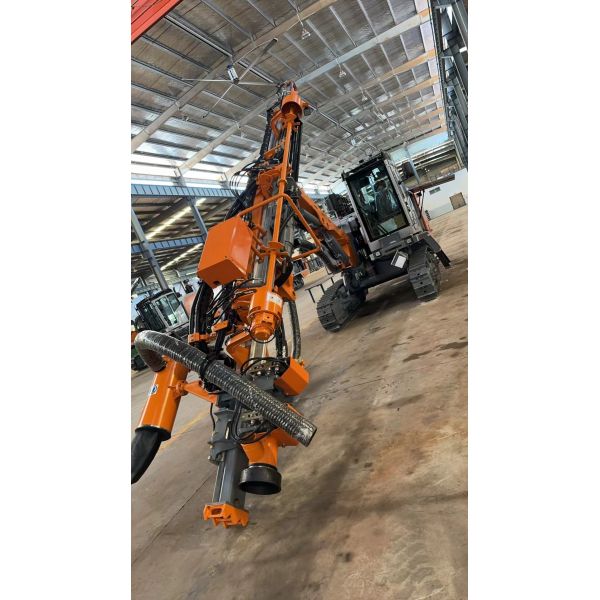

Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine

Technical Parameter

Main Specifications

T640J

Drifter Model

ZY-104H

Hole range

76-102 mm

Drill rod

T45(T51)x3,660 mm

Hole depth

22 m

Max. impact power

20 kW

Model

4BTA3.9-C125- II

Rated power

93 kW

Speed

2,200 rpm

Fuel tank capacity

280 L

Diesel Engine

Cummins 152 kW

Feed / Pull up force

20 kN / 20 kN

Rod changer and #S of rods stored

5+1(Auto)

Air Compressor Air consumption

7 m3/min

Air Compressor pressure

8 bar

Max. climbing ability

25°

Track frame oscillation

±10°

Max. traction force

69 KN

Total Weight

14,100 kg

Packing and Transport

1. Drilling machine is bare packing.

2. Drilling tools will be packed in cases or wooden boxes.

3.The delivery time for machine normally be 25-35 days after receiving payment. The drilling tools normally 3-5days if in stock.

4. Shipping by sea, air or express are all available.

Company Profile
Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
Customer Visit
Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine
Exhibition
Rock Drill Rig T640J Top Drive Hammer Mining Drilling Rig Quarry Drill Machine
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
